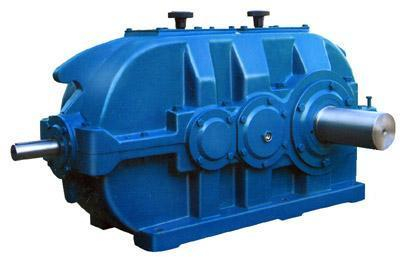

speed reducer-Shandong XinQiang Machinery co.,ltd. On Makeronly.com

Min.Order Quantity: 1 Set
Supply Ability: 880 Sets per Month
Port: customized
Payment Terms: L/C,D/A,D/P,T/T

Get Latest Price:

*Quantity: Set/Sets

Add to My Favorites

Verified Supplier Shandong XinQiang Machinery Limited Company

(Mainland) | Factory

Experience:2015-05-19

Visit Factory

Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing

Product Details

Quick Details
Specifications

Size: standard
Place of Origin: China
Brand Name: XinQiang Machinery
Model Number: ZD,ZDH,ZDSH
Weight: 260.000 kg

Applications:
The products are widely applied in electricity, coal, cement, metallurgy, harbor, agriculture, shipping, lifting, environment protection, stage, logistic, weaving, paper making, light industry, plastics and other fields as follows,

1. Conveyor machinery
2. Craning
3. Bagger
4. Enginery for foot industry
5. Washer
6. working machine
7. Cropping & shearing machine
8. woodworking machine
9. Machines for plastic industry

model			high speed shaft				s	slow speed shaft				T	assemble form						weight
circular tooth		involute tooth	I	D	B	T	s	I1	D1	B1	T1	T	T1	D1	D2	D7	D8	H2	(kg)
ZDSH10	ZDH10	ZD10	55	25	8	27.5	155	55	30	8	32.5	155	95	35	45	24			32
15	15	15	55	30	8	32.5	210	70	40	12	42.8	225	135	45	25	35	M6	15	85
20	20	20	70	40	12	42.8	255	85	55	16	58.5	270	160	60	25	45	M6	15	155
25	25	25	85	50	16	53.5	280	105	70	20	74.5	315	170	75	25	45	M6	15	260
30	30	30	105	60	18	63.9	315	115	85	24	90.0	340	185	95	75	55	M8	20	375
35	35	35	105	70	20	74.2	355	125	100	28	105.7	380	21	110	75	55	M8	20	530
40	40	40	125	80	24	85	400	140	110	32	116.5	415	235	120	75	55	M8	20	735
45	45	45	140	90	24	95	435	165	130	36	137.2	470	255	140	75	55	M8	20	950
50	50	50	160	100	28	105.7	475	180	140	36	147.2	500	275	150	75	55	M8	20	1345
60	60	60	165	120	32	126.5	515	200	170	40	178.5	570	310	180	75	55	M8	20	1915
70	70	70	180	140	36	147.2	580	240	200	45	209.7	630	335	220	75	55	M8	20	2700

transmission rationumber	1	2	3	4	5	6	7	8	9	01	1
nominal transmission	2	2.24	2.5	2.8	3.15	3.35	4	4.5	5	5.6	6.3

model			center to center	center to center	overall size			B1	B2	L1	L2	L3	H1	anchoring bolt
circular tooth		involute tooth	a	H0	H	L	B							D	N	B3	L4	L5
ZDSH10	ZDH10	ZD10	100	130-0.5	240	355	140	150	48	245	35	95	16		4	110
15	15	15	150	200-0.5	355	450	210	220	70	340	35	110	20	M16		160		80
20	20	20	200	250-0.5	493	575	250	250	80	440	45	145	20			170	10	130
25	25	25	250	300-0.5	593	710	270	270	90	545	50	165	25	M20		210		160
30	30	30	300	350-0.5	683	835	300	300	100	650	64	195	30	M24		240		205
35	35	35	350	400-0.5	778	955	350	350	110	750	68	215	30		6	280	20	250
40	40	40	400	450-0.5	878	1085	390	390	120	850	67	240	32	M30		310		280
45	45	45	450	500-0.5	973	1210	430	130	970	92	265	40			340	35	325	525
50	50	50	500	550-1.0	1106	1320	470	140	1070	97	275	40			390	40	355	600
60	60	60	600	650-1.0	1301	1550	540	540	145	1265	97	310	45	M36		430		440
70	70	70	700	750-1.0	1496	1820	580	580	150	1490	128	370	52	M42		55	550

HJJ

Size: standard
Place of Origin: China
Brand Name: XinQiang Machinery
Model Number: ZD,ZDH,ZDSH
Weight: 260.000 kg

model			high speed shaft				s	slow speed shaft				T	assemble form						weight
circular tooth		involute tooth	I	D	B	T	s	I1	D1	B1	T1	T	T1	D1	D2	D7	D8	H2	(kg)
ZDSH10	ZDH10	ZD10	55	25	8	27.5	155	55	30	8	32.5	155	95	35	45	24			32
15	15	15	55	30	8	32.5	210	70	40	12	42.8	225	135	45	25	35	M6	15	85
20	20	20	70	40	12	42.8	255	85	55	16	58.5	270	160	60	25	45	M6	15	155
25	25	25	85	50	16	53.5	280	105	70	20	74.5	315	170	75	25	45	M6	15	260
30	30	30	105	60	18	63.9	315	115	85	24	90.0	340	185	95	75	55	M8	20	375
35	35	35	105	70	20	74.2	355	125	100	28	105.7	380	21	110	75	55	M8	20	530
40	40	40	125	80	24	85	400	140	110	32	116.5	415	235	120	75	55	M8	20	735
45	45	45	140	90	24	95	435	165	130	36	137.2	470	255	140	75	55	M8	20	950
50	50	50	160	100	28	105.7	475	180	140	36	147.2	500	275	150	75	55	M8	20	1345
60	60	60	165	120	32	126.5	515	200	170	40	178.5	570	310	180	75	55	M8	20	1915
70	70	70	180	140	36	147.2	580	240	200	45	209.7	630	335	220	75	55	M8	20	2700

transmission rationumber	1	2	3	4	5	6	7	8	9	01	1
nominal transmission	2	2.24	2.5	2.8	3.15	3.35	4	4.5	5	5.6	6.3

model			center to center	center to center	overall size			B1	B2	L1	L2	L3	H1	anchoring bolt
circular tooth		involute tooth	a	H0	H	L	B							D	N	B3	L4	L5
ZDSH10	ZDH10	ZD10	100	130-0.5	240	355	140	150	48	245	35	95	16		4	110
15	15	15	150	200-0.5	355	450	210	220	70	340	35	110	20	M16		160		80
20	20	20	200	250-0.5	493	575	250	250	80	440	45	145	20			170	10	130
25	25	25	250	300-0.5	593	710	270	270	90	545	50	165	25	M20		210		160
30	30	30	300	350-0.5	683	835	300	300	100	650	64	195	30	M24		240		205
35	35	35	350	400-0.5	778	955	350	350	110	750	68	215	30		6	280	20	250
40	40	40	400	450-0.5	878	1085	390	390	120	850	67	240	32	M30		310		280
45	45	45	450	500-0.5	973	1210	430	130	970	92	265	40			340	35	325	525
50	50	50	500	550-1.0	1106	1320	470	140	1070	97	275	40			390	40	355	600
60	60	60	600	650-1.0	1301	1550	540	540	145	1265	97	310	45	M36		430		440
70	70	70	700	750-1.0	1496	1820	580	580	150	1490	128	370	52	M42		55	550

HJJ
