- Size: standard
- Place of Origin: China
- Brand Name: XinQiang Machinery
- Model Number: PE
- Weight: 5000.000 kg
| model | feed opening(mm) | maximum feed fraction(mm) | adjusting range of discharge hole(mm) | handling capability(t/h) | speed of main shaft(r/min) | motor model | motor power(kw) | note |
| PE150*250 | 150*250 | 125 | 10-40 | 0.6-3 | 285 | Y132S-4 | 5.5 | |
| PE250*400 | 250*400 | 210 | 20-80 | 5-20 | 300 | Y108L1-6 | 15 | |
| PE400*600 | 400*600 | 350 | 40-100 | 25-64 | 275 | Y225M-6 | 30 | |
| PE600*900 | 600*900 | 480 | 75-200 | 56-192 | 250 | YR280M-8 | 75 | |
| PE150*750 | 150*700 | 120 | 10-40 | 8-35 | 320 | Y180L-6 | 15 | |
| PEG150*750 | 150*750 | 125 | 8-40 | 9-40 | 330 | Y200L2-4 | 15 | |
| PEX200*1000 | 200*1000 | 160 | 10-40 | 12-50 | 320 | Y200L2-6 | 22 | efficiency |
| PEX200*1200 | 200*1200 | 160 | 10-40 | 15-60 | 320 | Y280S-8 | 37 | |
| PEX250*600 | 250*600 | 210 | 10-40 | 7-22 | 320 | Y200L2-6 | 22 | |
| PEX250*750 | 250*750 | 210 | 15-50 | 13-35 | 320 | Y225M-6 | 30 | |
| PEX250*1000 | 250*1000 | 210 | 15-50 | 15-45 | 330 | Y280S-8 | 37 | |
| PEX250*1200 | 250*1200 | 210 | 15-50 | 18-60 | 330 | Y280S-8 | 37 | |
| S*300*500 | 300*500 | 300 | 6-50 | 5-40 | 388 | Y160L-4 | 22 | patented product |
The crusher applies to crush the medium and super hardness materials.
It is widely used in mining, smelting, building materials, highway, railway, water conservancy and chemica l industries.

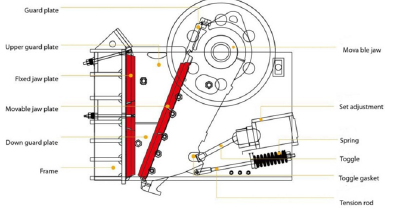

W orking principle
The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw, and the stuff will be crushed in multiple ways. The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of jaw crusher moves away from fixed jaw by the pulling force of rod and spring, the products after crushing will be discharged from the outlet of Jaw crusher.
- Size: standard
- Place of Origin: China
- Brand Name: XinQiang Machinery
- Model Number: PE
- Weight: 5000.000 kg
| model | feed opening(mm) | maximum feed fraction(mm) | adjusting range of discharge hole(mm) | handling capability(t/h) | speed of main shaft(r/min) | motor model | motor power(kw) | note |
| PE150*250 | 150*250 | 125 | 10-40 | 0.6-3 | 285 | Y132S-4 | 5.5 | |
| PE250*400 | 250*400 | 210 | 20-80 | 5-20 | 300 | Y108L1-6 | 15 | |
| PE400*600 | 400*600 | 350 | 40-100 | 25-64 | 275 | Y225M-6 | 30 | |
| PE600*900 | 600*900 | 480 | 75-200 | 56-192 | 250 | YR280M-8 | 75 | |
| PE150*750 | 150*700 | 120 | 10-40 | 8-35 | 320 | Y180L-6 | 15 | |
| PEG150*750 | 150*750 | 125 | 8-40 | 9-40 | 330 | Y200L2-4 | 15 | |
| PEX200*1000 | 200*1000 | 160 | 10-40 | 12-50 | 320 | Y200L2-6 | 22 | efficiency |
| PEX200*1200 | 200*1200 | 160 | 10-40 | 15-60 | 320 | Y280S-8 | 37 | |
| PEX250*600 | 250*600 | 210 | 10-40 | 7-22 | 320 | Y200L2-6 | 22 | |
| PEX250*750 | 250*750 | 210 | 15-50 | 13-35 | 320 | Y225M-6 | 30 | |
| PEX250*1000 | 250*1000 | 210 | 15-50 | 15-45 | 330 | Y280S-8 | 37 | |
| PEX250*1200 | 250*1200 | 210 | 15-50 | 18-60 | 330 | Y280S-8 | 37 | |
| S*300*500 | 300*500 | 300 | 6-50 | 5-40 | 388 | Y160L-4 | 22 | patented product |
