- Size: standard
- Place of Origin: China
- Brand Name: XinQiang Machinery
- Model Number: TD75
- Weight: 3000.000 kg

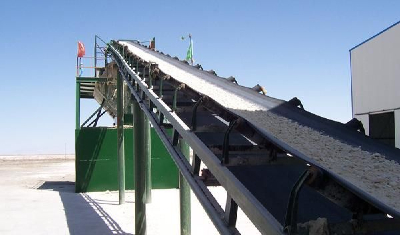

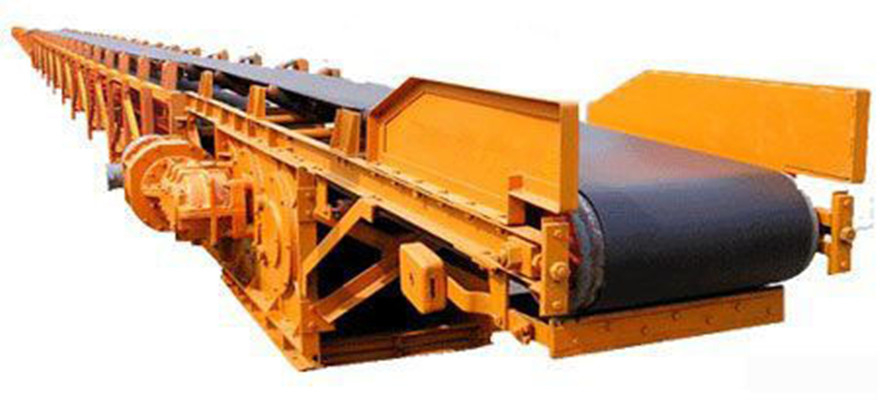

BELT-CONVEYOR
Full unit made with high rigidity alloy aluminum structure beam (A6063). Super-strong structure makes it longwearing and not deformed.
The height of both sides can be adjusted easily by a hand shaft, convenient in using.
Enclose 4 wheels, convenient to move. Four fixed feet are foldable, save space.
Speed is adjustable, easy to use.
With standard robot connector which can be connected quickly.
1.Longwearing and not deformed.
2.Convenient to move, save space.
3.Speed is adjustable, easy to use.
4.Quickly connected.
form of fracture | tape speed (m/s) | tape widthB(mm) | |||||
500 | 650 | 800 | 1000 | 1200 | 1400 | ||
cnveying capabilityG(t/h) | |||||||
flot profile | 0.8 | 78 | 131 | ||||
1.0 | 97 | 169 | 278 | 435 | 655 | 891 | |
1.25 | 122 | 206 | 348 | 544 | 819 | 1115 | |
1.6 | 156 | 264 | 445 | 696 | 1048 | 1427 | |
2.0 | 191 | 323 | 546 | 853 | 1284 | 1748 | |
2.5 | 232 | 391 | 661 | 1033 | 1556 | 2118 | |
3.15 | 824 | 1233 | 1858 | 2528 | |||
4.0 | 2202 | 2996 | |||||
parallel | 0.8 | 41 | 67 | 118 | |||
1.0 | 52 | 88 | 147 | 230 | 345 | 469 | |
1.25 | 66 | 110 | 184 | 288 | 432 | 588 | |
1.6 | 84 | 142 | 236 | 368 | 553 | 756 | |
2.0 | 103 | 174 | 289 | 451 | 677 | 922 | |
2.5 | 125 | 211 | 350 | 546 | 821 | 111 |
