- Size: standard
- Place of Origin: China
- Brand Name: XinQiang Machinery
- Model Number: PYB
- Weight: 5000.000 kg

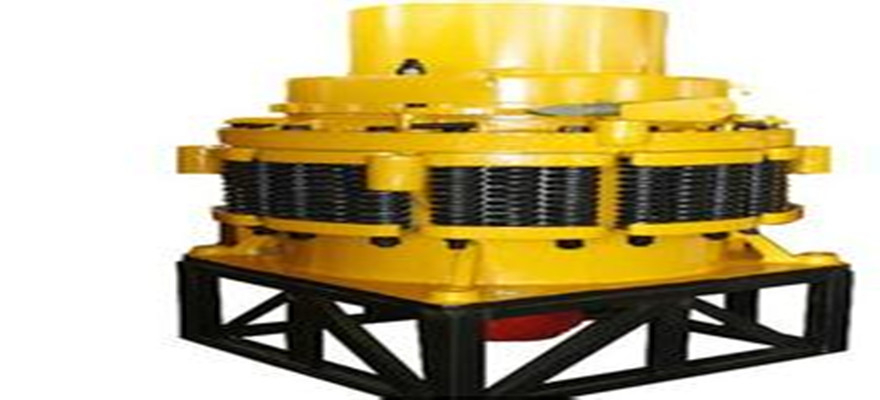

Cone crusher is applied to crushing materials in the metallurgy, building, road construction, chemistry and silicate industry, and capable of crushing various ores and rocks with moderate hardness or above. The cone crusher, featured by large crushing ratio, high efficiency, low energy consumption and uniform particle size, is suitable for intermediate crushing and fine crushing of various ores and rocks.
| model | the diameter of quartering hammer(mm) | feed opening(mm) | maximum feed fraction(mm) | adjusting range of discharge hole(mm) | power of mainly motor(kw) | rotational speed of eccentric bushing(r/min) | production capability(t/h) | note |
| PYB-600 | 600 | 75 | 60 | 12-25 | 30 | 396 | 40 | spring type |
| PYB-900 | 900 | 135 | 110 | 15-50 | 55 | 330 | 50-90 | |
| PYB-1200 | 1200 | 170 | 145 | 20-50 | 110 | 300 | 110-168 | |
| PYB-1750 | 1750 | 250 | 215 | 25-60 | 155 | 245 | 280-490 | |
| PYB-2200 | 2200 | 360 | 300 | 30-60 | 280 | 220 | 500-1000 |
