- Size: 1200*3600
- Place of Origin: China
- Brand Name: XinQiang Machinery
- Model Number: YA
- Weight: 3210.000 kg

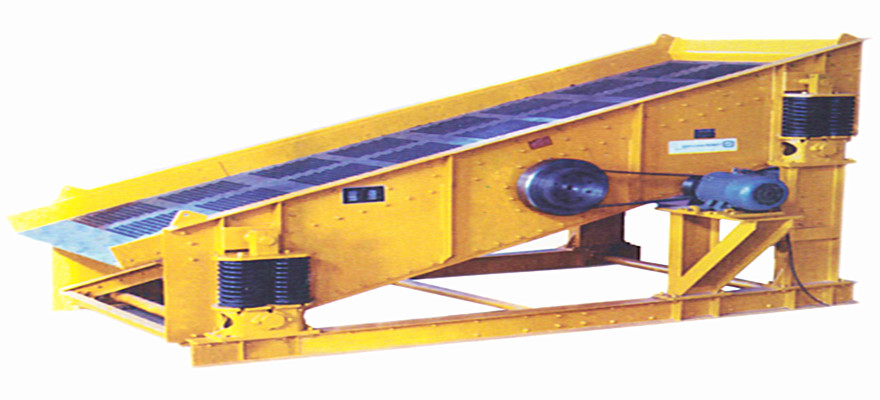

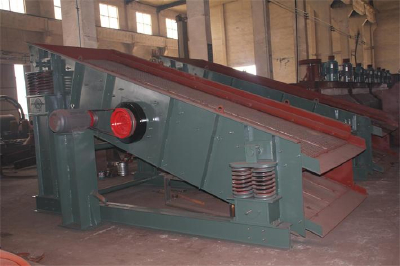

YK series circular vibrating screen are manufactured by introducing German technology, suit for screening of sandstone material for stone quarry, also for product classification for coal preparation, ore beneficiation, building material, electric power and chemical industry.
Features:
1. Strong exciting force for adopting block eccentricity as exciting force.
2. Screen crossbeam and box are made of high strength bolt, which show the features of compact structure and easy maintenance.
3. Adopting tyre shaft coupling, which show the features of flexible connection and stable operation.
4. Adopting small swing, high frequency, big obliquity structure, which show the features of high screening efficiency, high processing capacity, long service time, low power consumption and lower noise.
| model | number of plies | screen area(㎡) | leaning angle of screen | maximum feed fraction（mm） | production capability（t/h） | model of motor | power of motor(kw) |
| YA1236 | 1 | 4.3 | 20 | 200 | 80-240 | Y160M-4 | 11 |
| 2YA1236 | 2 | 4.3 | 20 | 200 | 80-240 | Y160M-4 | 11 |
| YA1530 | 1 | 4.5 | 20 | 200 | 80-240 | Y160M-4 | 11 |
| YA1536 | 1 | 5.4 | 20 | 200 | 100-350 | Y160M-4 | 11 |
| 2YA1536 | 2 | 5.4 | 20 | 400 | 100-350 | Y160L-4 | 15 |
| YAH1536 | 1 | 5.4 | 20 | 400 | 160-650 | Y160M-4 | 11 |
| 2YAH1536 | 2 | 5.4 | 20 | 400 | 160-650 | Y160L-4 | 15 |
- Size: 1200*3600
- Place of Origin: China
- Brand Name: XinQiang Machinery
- Model Number: YA
- Weight: 3210.000 kg
| model | number of plies | screen area(㎡) | leaning angle of screen | maximum feed fraction（mm） | production capability（t/h） | model of motor | power of motor(kw) |
| YA1236 | 1 | 4.3 | 20 | 200 | 80-240 | Y160M-4 | 11 |
| 2YA1236 | 2 | 4.3 | 20 | 200 | 80-2440 | Y160M-4 | 11 |
| YA1530 | 1 | 4.5 | 20 | 200 | 80-240 | Y160M-4 | 11 |
| YA1536 | 1 | 5.4 | 20 | 200 | 100-350 | Y160M-4 | 11 |
| 2YA1536 | 2 | 5.4 | 20 | 400 | 100-350 | Y160L-4 | 15 |
| YAH1536 | 1 | 5.4 | 20 | 400 | 160-650 | Y160M-4 | 11 |
| 2YAH1536 | 2 | 5.4 | 20 | 400 | 160-650 | Y160L-4 | 15 |
