Product Description
Features
1: Due to strong vibratingon the screening box, cause material plugging reduced, so that the screen can get a high screening efficiency and productivity;
2: Simple structure, convenient to replace the screen, less power consumption;
3: Due to the pulley centerlineand the bearing centerline are not along the same line, that can eliminate resonance for the belt, reduce its fatigue and wear, which also can increase the amplitude for sieve, and further increase the productivity.
Descriptions

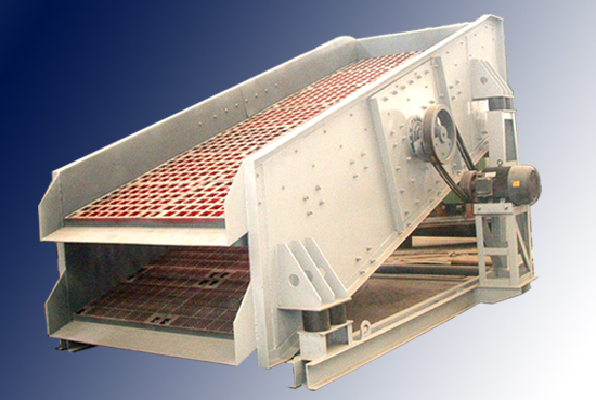

Automatic center vibrating screen can be used for coarse, fine and superfine size separating for ore and coal, also can be used for dewatering or desliming processing forother materials.The automatic center vibrating screen consists of vibration exciter, screening box, supporting device and motor.
Motor through V-belt drives the axis of exciter rotating, due to imbalance on the rotating vibration exciter produce the centrifugal inertial force, it let the screening box start vibrating.Change eccentric weight of the vibration exciter can get different amplitudes.
(Note:According to different requirements of customers, our company applies vibrating screen with different specifications and vibrating modes.)
model | specification | number of plies | maximum feed fraction(mm) | production capability(t/h) | model of motor | power of motor(kw) | note |
szz0918 | 900*1800 | 1 | 40 | 20-25 | Y100L1-4 | 2.2 | suspense installation |
szz0918 | 900*1800 | 1 | 40 | 20-25 | Y100L1-4 | 2.2 | sedentary screen cloth |
2szz0918 | 900*1800 | 2 | 40 | 20-25 | Y100L-4 | 2.2 | suspense installation |
2szz0918 | 900*1800 | 2 | 40 | 20-25 | Y100L1-4 | 2.2 | sedentary screen cloth |
szz1225 | 1250*2500 | 1 | 100 | 70-100 | Y132S-4 | 5.5 | sedentary screen cloth |
szz1225 | 1250*2500 | 1 | 100 | 70-100 | Y132S-4 | 5.5 | suspense installation |
2szz1225 | 1250*2500 | 2 | 100 | 100 | Y132S-4 | 5.5 | sedentary screen cloth |
2szz1225 | 1250*2500 | 2 | 100 | 100 | Y132S-4 | 5.5 | suspense installation |
szz1530 | 1500*3000 | 1 | 100 | 200 | Y132M-4 | 7.5 | sedentary screen cloth |
szz1530 | 1500*3000 | 1 | 100 | 200 | Y132M-4 | 7.5 | suspense installation |
2szz1530 | 1500*3000 | 2 | 100 | 300 | Y132M-4 | 7.5 | sedentary screen cloth |
