- Size: 500*750
- Place of Origin: China
- Brand Name: XinQiang Machinery
- Model Number: XQPE
- Weight: 9210.000 kg

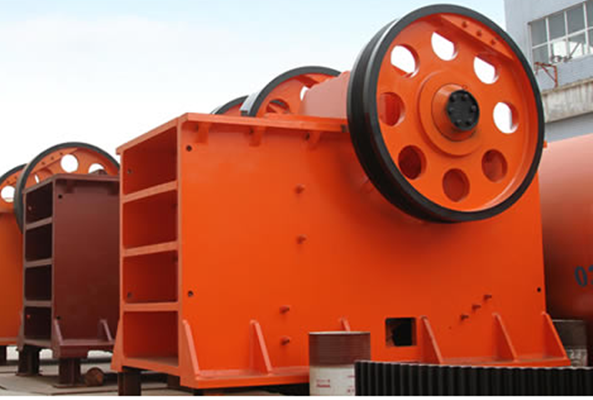

1.Jaw Crusher Introduction:
This series jaw crusher has properties of large crushing ratio, even granularity, simple structure, reliable operation, easy maintenance, and low cost. So this kind of jaw crusher can be widely used in mining, metallurgy, building material, highway, railway, water project, chemical industry, etc, for crushing various materials with compression strength less than 320MPa.
2.Jaw Crusher Features:
1. The deep crushing cavity increases the feeding capacity and output capacity;
2. High ratio of crushing, homogeneous final product size;
3. Adjusting the discharge opening through gasket, more convenient, it can meet different customers' requirements.
4. Lubricate system is safe and reliable, easy to change the spare parts;
5. Simple structure, easy maintenance, consumption cost is lower;
6. Energy-saving, for one set saving about 15%-30%;
7. Little noise and dust.
3.Jaw Crusher Working Principle:
Electromotor drives eccentric shaft rotating by belt pulley, moving jaw is forced to move to or leave from fixed jaw, material will be squeezed, twisted and grinded, material will be crushed to smaller size and final product will fall down and discharged from discharge port.
model | maximum feed fraction(mm) | adjusting range of discharge hole(mm) | production capability(t/h) | power of motor(kw) | theoretical weight(t) |
XQPE300*1300 | 250 | 20-90 | 10-65 | 75 | 11.6 |
XQPE500*750 | 420 | 50-120 | 20-70 | 55 | 9.21 |
XQPE600*900 | 520 | 62-235 | 70-180 | 75(55) | 16.18 |
XQPE750*1060 | 630 | 80-250 | 140-260 | 110 | 23.91 |
XQPE900*1200 | 750 | 95-285 | 240-460 | 132 | 48 |
XQPE1200*1500 | 950 | 160-300 | 300-650 | 220 | 98.2 |
XQPE1500*1800 | 950 | 220-350 | 500-950 | 355 | 122 |
