- Guaranteed Secure Payments on Every Order
- Refund if your item is not delivered or as described
- Buyer Protection after order confirmation
- Size: 1000*1050
- Place of Origin: China
- Brand Name: XinQiang Machinery
- Model Number: PE-1007V
- Weight: 9510.000 kg
Product Description

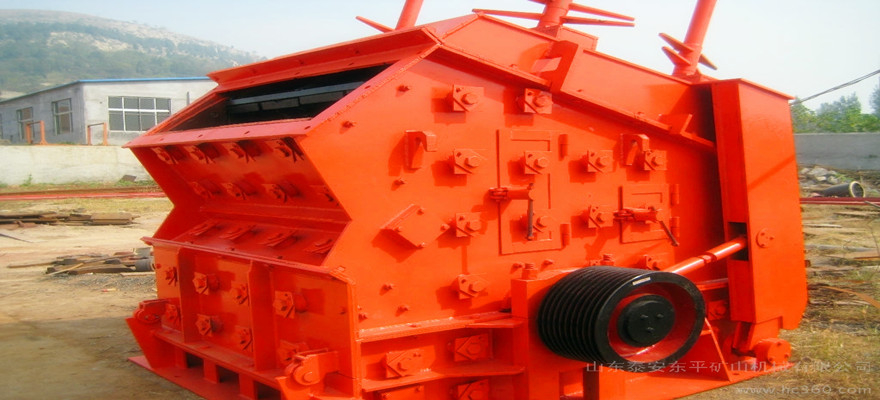

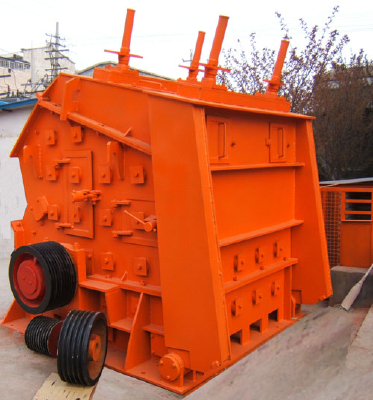

Brief Introduction of Impact crusher,
By absorbing the advanced technology from the world, Shandong XINQIANG Machinery researched and designed PE series impact crusher. It can be used to deal with materials whose size below 500mm and whose compression strength less than 360Mpa. Thus, it is widely used in many industries, like chemical, metallurgy, road and bridge construction and sand making and so on.
Impact crusher features&advantages;
1.Main shaft is equipped with imported precision rolling bearing. It makes main shaft work stable, lengthen maintenance cycle, increase productivity.
2.Hydraulic lifting mechanism of upper cover can move away the cover easily, which saves man power during maintenance.
3.Over-vibration device is equipped. There will be alarm when vibration surpasses a stipulated figure.It will stop the vsi impact Crusher machine, in order to protect it.
4.Special feed opening structure make the impact Crusher machine possible that center feeding and ring feeding comes together,in order to meet requirements of different stones. In addition, this equipment can not only crush stone, but also iron.
5.Shape of material-thronging device is better designed, which improve the utilization ratio.
6.Optimized arrangement design of wear resistant materials increase the service life of the machine by over 40%, thus decrease the cost by over 40%.
7.The main frame is made with rivet hot technique, which enhances intensity of structure and tenacity,and ensures stable performance.
specifications and models | power of motor(kw) | size of feed opening(mm) | production capability(t/h) | weight(kg) |
PE-2020V | 500-600 | 800*2020 | 600-800 | 90000 |
PE-1820V | 400-440 | 1600*2020 | 400-600 | 65000 |
PE-1520V | 280-320 | 960*2020 | 280-350 | 45000 |
PE-1315V | 180-260 | 860*1520 | 160-250 | 19800 |
PE-1310V | 110-132 | 600*1100 | 80-120 | 14620 |
PE-1214V | 132-160 | 400*1430 | 130-180 | 19580 |
PE-1210V | 110-132 | 400*1080 | 70-120 | 14400 |
PE-1010V | 55-75 | 400*1080 | 50-80 | 12120 |
PE-1007V | 37-55KW | 400*1080mm | 30-50t/h | 9510kg |
- Size: 1000*1050
- Place of Origin: China
- Brand Name: XinQiang Machinery
- Model Number: PE-1007V
- Weight: 9510.000 kg
specifications and models | power of motor(kw) | size of feed opening(mm) | production capability(t/h) | weight(kg) |
PE-2020V | 500-600 | 800*2020 | 600-800 | 90000 |
PE-1820V | 400-440 | 1600*2020 | 400-600 | 65000 |
PE-1520V | 280-320 | 960*2020 | 280-350 | 45000 |
PE-1315V | 180-260 | 860*1520 | 160-250 | 19800 |
PE-1310V | 110-132 | 600*1100 | 80-120 | 14620 |
PE-1214V | 132-160 | 400*1430 | 130-180 | 19580 |
PE-1210V | 110-132 | 400*1080 | 70-120 | 14400 |
PE-1010V | 55-75 | 400*1080 | 50-80 | 12120 |
PE-1007V | 37-55KW | 400*1080mm | 30-50t/h | 9510k |
