- Size: 400*1080
- Place of Origin: China
- Brand Name: XinQiang Machinery
- Model Number: CBZ
- Weight: 14400.000 kg

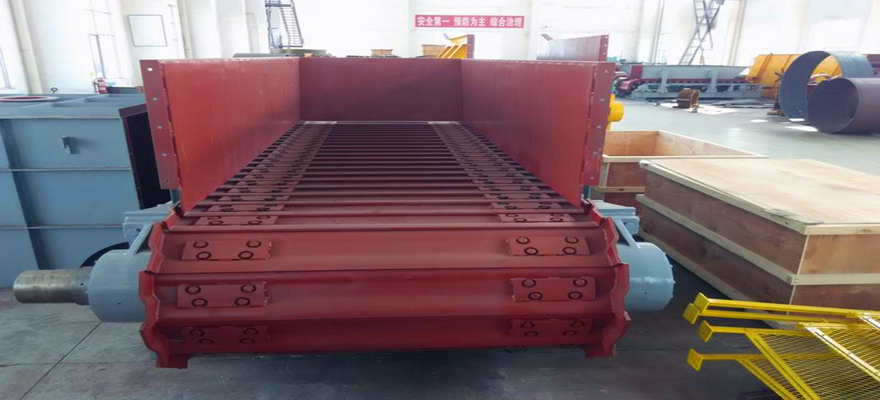

Plate type feeder, widely used in mining, metallurgy, buildingmaterials, and coal and other industries. It is suitable for short distance,large pieces of material transportation, materials are widely used in thelarge primary broken before shipping.
This machine can complete much work in the bad environment,for the change of particle size, composition, temperature, viscosity, thematerial with higher humidity adaptability is strong, and uniform feeding,is accurate and reliable.
Feature:
1. Simple structure
2. Reliable quality
3. Long service life
4. Vibrating smoothly
5. Light weight
6. Wearale and high impact
| Type | Link Plate Width (mm) | Length (mm) | Chain Speed (m/s) | Feeding Size (mm) | Capacity (t/h) | Motor Power (kw) |
| CBZ100-6 | 1000 | 6000 | 0.005-0.05 | <=450 | 50 | 1.5 |
| CBZ110-6 | 1100 | 6000 | 0.022-0.065 | <=400 | 50-150 | 7.5 |
| CBZ125-8 | 1250 | 8000 | 0.0064-0.064 | <=600 | 100 | 18.5 |
| CBZ150-8 | 1500 | 8000 | 0.0071-0.071 | <=800 | 180-200 | 22 |
| CBZ160-27 | 1600 | 27000 | 0.068 | <=850 | 200 | 37 |
| CBZ180-10 | 1800 | 10000 | 0.02-0.07 | <=850 | 200-500 | 37 |
| CBZ200-10 | 2000 | 10000 | 0.026-0.08 | <=1000 | 250 | 45 |
| CBZ220-10 | 2200 | 10000 | 0.026-0.08 | <=1000 | 250 | 45 |
| CBZ230-10 | 2300 | 10000 | 0.05-0.09 | <=1000 | 340 | 55 |
| CBZ240-12 | 2400 | 12000 | <=1200 | 1100 | 55×2 |
- Size: 400*1080
- Place of Origin: China
- Brand Name: XinQiang Machinery
- Model Number: CBZ
- Weight: 14400.000 kg
| Type | Link Plate Width (mm) | Length (mm) | Chain Speed (m/s) | Feeding Size (mm) | Capacity (t/h) | Motor Power (kw) |
| CBZ100-6 | 1000 | 6000 | 0.005-0.05 | <=450 | 50 | 1.5 |
| CBZ110-6 | 1100 | 6000 | 0.022-0.065 | <=400 | 50-150 | 7.5 |
| CBZ125-8 | 1250 | 8000 | 0.0064-0.064 | <=600 | 100 | 18.5 |
| CBZ150-8 | 1500 | 8000 | 0.0071-0.071 | <=800 | 180-200 | 22 |
| CBZ160-27 | 1600 | 27000 | 0.068 | <=850 | 200 | 37 |
| CBZ180-10 | 1800 | 10000 | 0.02-0.07 | <=850 | 200-500 | 37 |
| CBZ200-10 | 2000 | 10000 | 0.026-0.08 | <=1000 | 250 | 45 |
| CBZ220-10 | 2200 | 10000 | 0.026-0.08 | <=1000 | 250 | 45 |
| CBZ230-10 | 2300 | 10000 | 0.05-0.09 | <=1000 | 340 | 55 |
| CBZ240-12 | 2400 | 12000 | <=1200 | 1100 | 55×2 |
